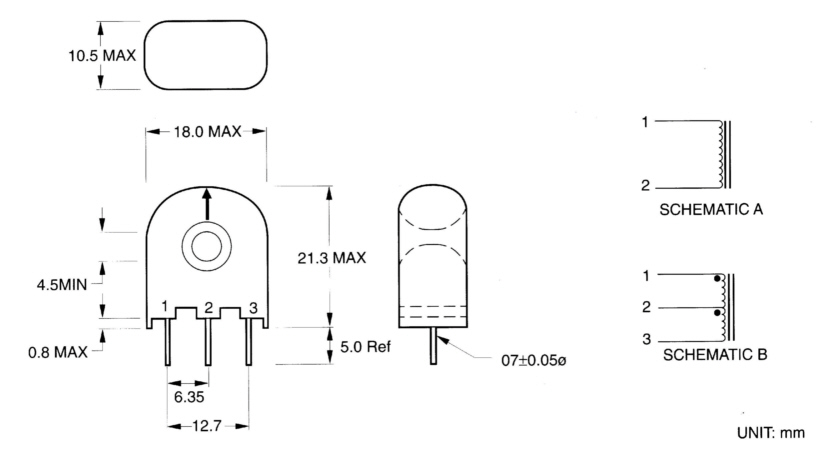

| 72000 Series Current Sense Transformers |
| •Pre-set secondary
winding for most common application •Designed for switch power supply applications •2500Vrms primary to secondary for Hi-POT •Frequency range of 20KHz plus •Encapsulated construction for robust operation |
|
Part Number |
Schematic Figure | Secondary Turns | Secondary Inductance (mH) Min. | Secondary inductance test voltage (15.75KHz) | Secondary DCR Max |
Secondary rated |
Primary unipolar rating
(Max) |
Primary bipolar rating in Amp-uSec | 1 Turn Primary
Peak sense current (Amps) |
|
72001
|
A
|
50
|
5.0
|
0.5
|
0.7
|
50
|
150
|
300
|
20
|
|
72002
|
A
|
100
|
20.0
|
1.0
|
1.4
|
100
|
300
|
600
|
20
|
|
72003
|
A
|
200
|
80.0
|
2.0
|
4.5
|
200
|
600
|
1200
|
20
|
|
72004
|
A
|
300
|
180.0
|
3.0
|
11.0
|
300
|
900
|
1800
|
20
|
|
72005
|
B
|
50CT
|
5.0
|
0.5
|
0.7
|
50
|
150
|
300
|
20
|
|
72006
|
B
|
100CT
|
20.0
|
1.0
|
1.4
|
100
|
300
|
600
|
20
|
|
72007
|
B
|
200CT
|
80.0
|
2.0
|
4.5
|
200
|
600
|
1200
|
20
|
|
72008
|
B
|
300CT
|
180.0
|
3.0
|
11.0
|
300
|
900
|
1800
|
20
|
|
|
|
