| 72200 Series Current Sense Transformers |
| •Pre-set Secondary
windings •Designed for switch power applications •2500Vrms primary to secondary Hi-POT •Frequency range of 20KHz plus •Encapsulated construction |

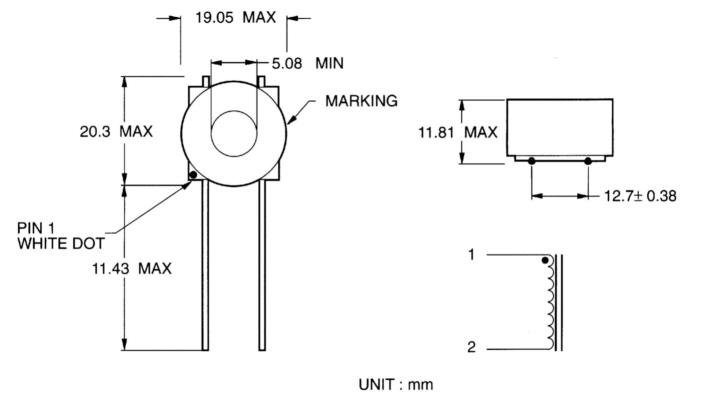

| Part No. without Primary | Schematic Figure | Secondary Turns | Secondary Inductance (mH) Min. | Secondary Inductance Test Voltage (15.75KHz) | Secondary DCR Max | Secondary rated terminating
resistance (Ohms)Nom |
Primary unipolar rating
Max in Amp-uSec) |
Primary bipolar rating (Max) | 1 Turn Primary Peak sense Current(Amps) |
|
72201
|
A
|
50
|
5.0
|
0.5
|
0.7
|
50
|
150
|
300
|
20
|
|
72202
|
A
|
100
|
20.0
|
1.0
|
1.4
|
100
|
300
|
600
|
20
|
|
72203
|
A
|
200
|
80.0
|
2.0
|
4.5
|
200
|
600
|
1200
|
20
|
|
72204
|
A
|
300
|
180.0
|
3.0
|
11.0
|
300
|
900
|
1800
|
20
|
|
|
|
