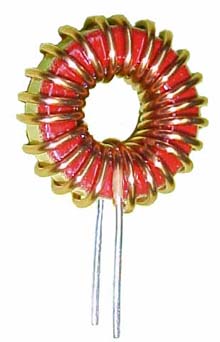

J20 Series High Current Toroidal Power Inductors.
Through Hole Mounting Construction

SPECIFICATIONS

	Click the button to see examples of our custom wound products. We wind anything to meet your needs.
	{dim}
	Click individual part numbers in the shopping cart below to download detailed Engineering Drawing in .PDF
	{Add2}

IMPORTANT
1) No tooling or set up fees required for standard parts
2) Minimum order : 1 Piece. FREE Samples available for large OEMs
3) Typical Delivery: 1 to 2 weeks

Notes:
1 ) The prices shown below are for low volume quantity. Please call  800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2 ) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3 ) Custom designs are available to meet any of your requirements. Please contact us
4 ) The data shown below can be sorted by Part Number, Inductance, Rated Current, DRC, or any of the columns. To sort, please click on the column headings ( first row ). To sort "Part Number" in ascending order, click "Part Number" once. Click "Part Number" once again to sort it in descending order. Click on "Inductance" to sort Inductance column in ascending or descending order, etc..

5) "Inductance at 1 Khz" ( 2nd column from left in table below ) is the inductance measured at zero or very low DC bias current.

6) "Current Rating" ( 3rd column from left in table below ) is based on a 40 deg C temperature rise at an ambient temperature of 60 deg C. This is the DC bias current through the inductor that will cause the inductor will reach a max. temp. rise of 40 deg C. above ambient with NO AIR FLOW.

7) The saturation current is at least 5 times the max current listed in 5 above, so instantaneous high current spikes can be tolerated by these inductors. .
