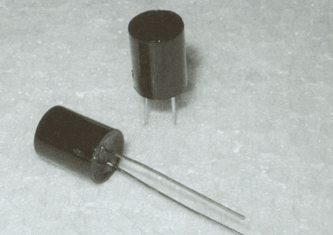

  • M1114 Series - Radial Shielded Power Chokes

    10 mH to 730 mH. Outside Diameter: 11mm. Capped with ferrite sleeve
    Power Inductor / Chokes - M1114 Series Shielded Radial Leaded Power Choke



    • VERY LOW COST and high efficiency power inductors and chokes
    • Ideal for switch mode output chokes, DC/DC converters and inverters, EMI suppression, smoothing chokes, etc
    • Fully Shielded with a ferrite sleeve for low EMI
    • Inductance range:10 mH to 730 mH}
    • Lead diameters: 0.1mm to 0.8 mm

    SPECIFICATIONS

    Click the button to see examples of our custom wound products. We wind anything to meet your needs.
    Tape and Reel Specs

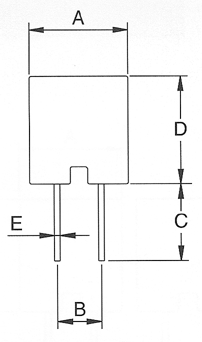

    CONSTRUCTION (mm)

    A (Diameter) = 12 mm max.
    B (Lead Spacing) = 5 + - 0.5 mm
    C (Lead length) = 14 + - 1 mm
    D (Height) = 15 mm max.
    E (Lead diameter) = 0.65 mm



    On Line Ordering:

    PART NUMBERING

    M-1114-103K

    M = Shielded Radial Power Choke
    11 = Nominal O.D. in mm
    14 = Nominal Height in mm
    103 = Inductance
    K = 10% ( 5% also available)


    1) The prices shown below are for low volume quantity.
    2) Please call
    800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
    3) CWS is extremely price competitive for large OEM quantities, with prices at a fraction of what is stated below..
    4) We will meet or beat all our competitors' pricing with better delivery !!
    5)The data shown below can be sorted by Part Number, Inductance, Rated Current, DCR, or any of the columns. To sort, please click on the column headings ( first row ). To sort Part Number in ascending order, click Part Number once. Click Part Number once again to sort it in descending order. Click on Inductance to sort Inductance column in ascending or descending order, etc..



      Part Number Inductance Tolerance Max D.C.
    Resistance
    Max D.C.
    Current
    Test
    Freq
    SRF Dimension Price
      M1114-124K 120.00 mH + - 10% 200 ohms 0.07 mm dia. wire 25.2 Mhz min. Q = 30   $0.75
    Buy Now

      M1114-104K 100.00 mH + - 10% 150 ohms 0.08 mm dia. wire 25.2 Mhz min. Q = 30   $0.75
    Buy Now

      M1114-823K 82.00 mH + - 10% 150 ohms 0.08 mm dia. wire 79.6 Mhz min. Q = 35   $0.75
    Buy Now

      M1114-683K 68.00 mH + - 10% 120 ohms 0.08 mm dia. wire 79.6 Mhz min. Q = 35   $0.75
    Buy Now

      M1114-563K 56.00 mH + - 10% 110 ohms 0.08 mm dia. wire 79.6 Mhz min. Q = 35   $0.75
    Buy Now

      M1114-473K 47.00 mH + - 10% 72 ohms 0.08 mm dia. wire 79.6 Mhz min. Q = 35   $0.75
    Buy Now

      M1114-393K 39.00 mH + - 10% 35 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 60   $0.75
    Buy Now

      M1114-333K 33.00 mH + - 10% 55 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 60   $0.75
    Buy Now

      M1114-223K 22.00 mH + - 10% 40 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 60   $0.75
    Buy Now

      M1114-183K 18.00 mH + - 10% 34 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 60   $0.75
    Buy Now

      M1114-153K 15.00 mH + - 10% 27 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 100   $0.75
    Buy Now

      M1114-123K 12.00 mH + - 10% 23 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 100   $0.75
    Buy Now

      M1114-103K 10.00 mH + - 10% 22 ohms 0.10 mm dia. wire 79.6 Mhz min. Q = 100   $0.75
    Buy Now
