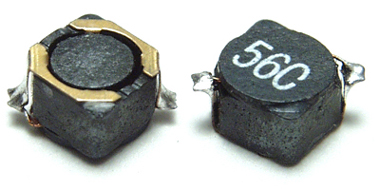

SP 0502 Series - 2mm Low Profile Surface Mount Inductor

SP 0502 Series -Shielded 2mm Low Profile Surface Mount Inductor

NEW PRODUCT. Order samples on-line. FREE samples available to large OEMs

  • Low Profile: 2.0mm thick surface mount inductors
  • Small size: 5 x 5mm,
  • Lowest cost: factory direct pricing
  • Highest performance
  • High energy storage and very low resistance
  • Flat top for reliable surface mount pick and place
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available
SPECIFICATIONS
Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Outline Dimension and PCB Land Pattern
Environmental Specifications.
Part Numbering


SP 0502 1R0 N

SP- Shielded Inductor Type

0502 - Dimension: 05mm O.D., 02mm height

1R0 - Inductance: 1.0 uH

N - Tolerance: +-30%,
M for +-20%,
K for +-10%

Electrical Characteristics:

1) Tested at 100 Khz, 0.5 Vrms
2) Operating Temperature range: -40 deg C to +85 deg C
3) All electrical specifications measured at 25 deg C.

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SP-0502-470N 47.00 uH +-30% 700 milli ohms 0.29 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-390N 39.00 uH +-30% 650 milli ohms 0.30 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-330N 33.00 uH +-30% 500 milli ohms 0.32 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-270N 27.00 uH +-30% 410 milli ohms 0.35 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-220N 22.00 uH +-30% 390 milli ohms 0.41 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-180N 18.00 uH +-30% 290 milli ohms 0.48 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-150N 15.00 uH +-30% 240 milli ohms 0.50 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-120N 12.00 uH +-30% 205 milli ohms 0.56 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-100N 10.00 uH +-30% 200 milli ohms 0.61 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-8R2N 8.20 uH +-30% 180 milli ohms 0.68 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-6R8N 6.80 uH +-30% 170 milli ohms 0.76 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-5R6N 5.60 uH +-30% 120 milli ohms 0.80 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-4R7N 4.70 uH +-30% 108 milli ohms 0.84 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-3R9N 3.90 uH +-30% 100 milli ohms 0.88 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-3R3N 3.30 uH +-30% 95 milli ohms 1.04 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-2R7N 2.70 uH +-30% 80 milli ohms 1.28 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-2R2N 2.20 uH +-30% 75 milli ohms 1.32 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now

  SP-0502-1R0N 1.00 uH +-30% 45 milli ohms 1.72 Amps 5 x 5 mm x 2.0mm ht $1.05
Buy Now
