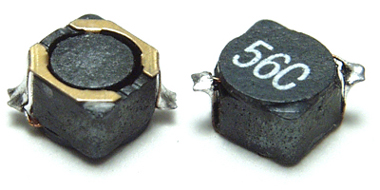

SP 0503 Series - 3mm Low Profile Surface Mount Inductor

SP 0503 Series -Shielded 3mm Low Profile Surface Mount Inductor

NEW PRODUCT. Order samples on-line. FREE samples available to large OEMs

  • Low Profile: 3.0mm thick surface mount inductors
  • Small size: 5 x 5mm,
  • Lowest cost: factory direct pricing
  • Highest performance
  • High energy storage and very low resistance
  • Flat top for reliable surface mount pick and place
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available
SPECIFICATIONS
Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Construction and PCB Land Pattern
Environmental Specifications.
Part Numbering


SP 0503 1R0 N

SP- Shielded Inductor Type

0503 - Dimension: 05mm O.D., 03mm height

1R0 - Inductance: 1.0 uH

N - Tolerance: +-30%,
M for +-20%,
K for +-10%

Electrical Characteristics:

1) Tested at 100 Khz, 0.5 Vrms
2) Operating Temperature range: -40 deg C to +85 deg C
3) All electrical specifications measured at 25 deg C.

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SP-0503-151N 150.00 uH +- 30% 1200 milli ohms 0.24 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-121N 120.00 uH +- 30% 1027 milli ohms 0.27 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-101N 100.00 uH +- 30% 760 milli ohms 0.29 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-820N 82.00 uH +- 30% 660 milli ohms 0.32 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-680N 68.00 uH +- 30% 550 milli ohms 0.35 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-560N 56.00 uH +- 30% 500 milli ohms 0.41 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-470N 47.00 uH +- 30% 480 milli ohms 0.48 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-390N 39.00 uH +- 30% 360 milli ohms 0.50 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-330N 33.00 uH +- 30% 320 milli ohms 0.56 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-270N 27.00 uH +- 30% 261 milli ohms 0.58 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-220N 22.00 uH +- 30% 248 milli ohms 0.70 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-180N 18.00 uH +- 30% 190 milli ohms 0.72 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-150N 15.00 uH +- 30% 165 milli ohms 0.76 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-120N 12.00 uH +- 30% 144 milli ohms 0.84 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-100N 10.00 uH +- 30% 134 milli ohms 1.00Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-8R2N 8.20 uH +- 30% 124 milli ohms 1.04 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-6R8N 6.80 uH +- 30% 98 milli ohms 1.12 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-5R6N 5.60 uH +- 30% 90 milli ohms 1.17 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-4R7N 4.70 uH +- 30% 80 milli ohms 1.32 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-3R3N 3.30 uH +- 30% 57 milli ohms 1.57 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-2R7N 2.70 uH +- 30% 49 milli ohms 1.60 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-2R2N 2.20 uH +- 30% 47 milli ohms 2.04 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-1R8N 1.80 uH +- 30% 44 milli ohms 2.20 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now

  SP-0503-1R2N 1.20 uH +- 30% 42 milli ohms 2.56 Amps 5 x 5mm x 3.1mm ht $1.10
Buy Now
