SP 6028 Series - CHOKE Coil Inductor

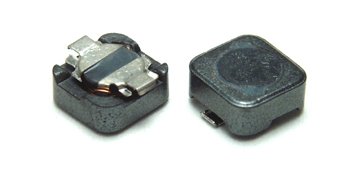

SP 6028 Series SMI - SHIELDED CHOKE COILS POWER INDUCTOR
  • Surface Mount Inductors
  • Designed for smallest possible size, lowest cost and highest performance
  • High Energy storage and very low resistence
  • Flat top for reliable surface mounting
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available

SPECIFICATIONS

Click the button to see a photo of the product's part. We wind anything to meet your needs.
Environmental Specifications.
Tape and Reel Specifications

CONSTRUCTION (m/m)

PART NUMBERING

ELECTRICAL SPECIFICATION -

Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SP-6028-331M 330.00 uH + - 20% 4.940 Ohms 0.19 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-271M 270.00 uH + - 20% 4.380 Ohms 0.22 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-221M 220.00 uH + - 20% 3.120 Ohms 0.23 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-181M 180.00 uH + - 20% 2.770 Ohms 0.26 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-151M 150.00 uH + - 20% 2.180 Ohms 0.28 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-121M 120.00 uH + - 20% 1.900 Ohms 0.31 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-101M 100.00 uH + - 20% 1.390 Ohms 0.34 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-820M 82.00 uH + - 20% 1.210 Ohms 0.38 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-680M 68.00 uH + - 20% 1.070 Ohms 0.42 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-560M 56.00 uH + - 20% 0.780 Ohms 0.46 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-470M 47.00 uH + - 20% 0.690 Ohms 0.50 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-390M 39.00 uH + - 20% 0.490 Ohms 0.54 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-330M 33.00 uH + - 20% 0.450 Ohms 0.59 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-270M 27.00 uH + - 20% 0.380 Ohms 0.66 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-220M 22.00 uH + - 20% 0.340 Ohms 0.74 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-180M 18.00 uH + - 20% 0.270 Ohms 0.80 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-150M 15.00 uH + - 20% 0.230 Ohms 0.90 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-120M 12.00 uH + - 20% 0.20 Ohms 1.00 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-100M 10.00 uH + - 20% 0.150 Ohms 1.10 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-5R5M 5.50 uH + - 20% 0.096 Ohms 1.40 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-4R0M 4.00 uH + - 20% 0.080 Ohms 1.63 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now

  SP-6028-2R9M 2.90 uH + - 20% 0.068 Ohms 1.94 Amps 6.6 sq mm. H=6.2mm $0.85
Buy Now


Need Power Inductors? CWS delivers the finest in surface mount inductors and standard inductors, power transformers, Common Mode Chokes, Ceramic Chip Inductors and Wire Wound Chip Inductors. CWS can supply all of your filtering needs as well, including EMI Filters, RFI Filters, LC Filter Inductors, and Common Mode Filters. From Transmission Line Transformers to power transformers, CWS is the source to call!
