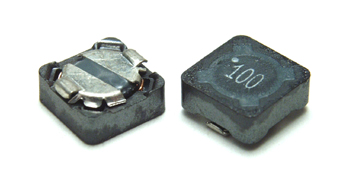

SP 7032 Series - CHOKE Coil Inductor

SP7032 Series Inductor- SHILEDED CHOKE COILS POWER INDUCTOR
  • Surface Mount Inductors
  • Designed for smallest possible size, lowest cost and highest performance
  • High Energy storage and very low resistence
  • Flat top for reliable surface mounting
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available

SPECIFICATIONS

Click the button to see a photo of the product's part. We wind anything to meet your needs.
Environmental Specifications.
Tape and Reel Specifications

PART NUMBERING

CONSTRUCTION (m/m)


CHARACTERISTICS

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SP-7032-102M 1,000.00 uH + - 20% 9.440 Ohms 0.16 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-821M 820.00 uH + - 20% 6.540 Ohms 0.18 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-681M 680.00 uH + - 20% 5.730 Ohms 0.19 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-561M 560.00 uH + - 20% 4.670 Ohms 0.22 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-471M 470.00 uH + - 20% 4.180 Ohms 0.24 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-391M 390.00 uH + - 20% 2.940 Ohms 0.26 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-331M 330.00 uH + - 20% 2.620 Ohms 0.28 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-271M 270.00 uH + - 20% 2.310 Ohms 0.32 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-221M 220.00 uH + - 20% 1.650 Ohms 0.35 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-181M 180.00 uH + - 20% 1.450 Ohms 0.39 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-151M 150.00 uH + - 20% 1.270 Ohms 0.43 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-121M 120.00 uH + - 20% 0.890 Ohms 0.49 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-101M 100.00 uH + - 20% 0.790 Ohms 0.50 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-820M 82.00 uH + - 20% 0.690 Ohms 0.57 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-680M 68.00 uH + - 20% 0.520 Ohms 0.61 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-560M 56.00 uH + - 20% 0.470 Ohms 0.68 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-470M 47.00 uH + - 20% 0.360 Ohms 0.76 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-390M 39.00 uH + - 20% 0.320 Ohms 0.77 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-330M 33.00 uH + - 20% 0.240 Ohms 0.91 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-270M 27.00 uH + - 20% 0.210 Ohms 0.96 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-220M 22.00 uH + - 20% 0.190 Ohms 1.07 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-180M 18.00 uH + - 20% 0.148 Ohms 1.20 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-150M 15.00 uH + - 20% 0.130 Ohms 1.33 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-120M 12.00 uH + - 20% 0.098 Ohms 1.52 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now

  SP-7032-100M 10.00 uH + - 20% 0.072 Ohms 1.68 Amps 7.3x7.3mm. H=7.3mm $0.90
Buy Now


Need Power Inductors? CWS delivers the finest in surface mount inductors and standard inductors, power transformers, Common Mode Chokes, Ceramic Chip Inductors and Wire Wound Chip Inductors. CWS can supply all of your filtering needs as well, including EMI Filters, RFI Filters, LC Filter Inductors, and Common Mode Filters. From Transmission Line Transformers to power transformers, CWS is the source to call!
