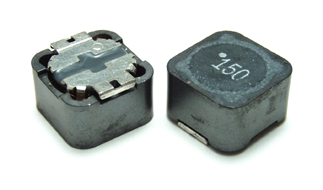

SP 1207 Series - CHOKE Coil Inductor

SP1207 Series Inductor - SHIELDED CHOKE COILS POWER CHIP
  • Surface Mount Inductors
  • Designed for smallest possible size, lowest cost and highest performance
  • High Energy storage and very low resistence
  • Flat top for reliable surface mounting
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Environmental Specifications.
Tape and Reel Specifications

PART NUMBERING

CONSTRUCTION (m/m)


CHARACTERISTICS

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

1)The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2)The data shown below can be sorted by Part Number, Inductance, Rated Current, DRC, or any of the columns. To sort, please click on the column headings ( first row ). To sort Part Number in ascending order, click Part Number once. Click Part Number once again to sort it in descending order. Click on Inductance to sort Inductance column in ascending or descending order, etc..


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SP-1207-102M 1,000.00 uH + - 20% 1.82 Ohms 0.55 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-821M 820.00 uH + - 20% 1.64 Ohms 0.60 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-681M 680.00 uH + - 20% 1.46 Ohms 0.67 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-561M 560.00 uH + - 20% 1.07 Ohms 0.73 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-471M 470.00 uH + - 20% 1.07 Ohms 0.73 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-391M 390.00 uH + - 20% 0.70 Ohms 0.88 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-331M 330.00 uH + - 20% 0.64 Ohms 0.95 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-271M 270.00 uH + - 20% 0.56 Ohms 1.06 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-221M 220.00 uH + - 20% 0.39 Ohms 1.16 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-181M 180.00 uH + - 20% 0.35 Ohms 1.30 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-151M 150.00 uH + - 20% 0.28 Ohms 1.42 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-121M 120.00 uH + - 20% 0.25 Ohms 1.60 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-101M 100.00 uH + - 20% 0.22 Ohms 1.70 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-820M 82.00 uH + - 20% 0.16 Ohms 1.95 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-680M 68.00 uH + - 20% 0.14 Ohms 2.10 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-560M 56.00 uH + - 20% 0.11 Ohms 2.35 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-470M 47.00 uH + - 20% 0.1 Ohms 2.5 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-390M 39.00 uH + - 20% 0.0729 Ohms 2.75 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-330M 33.00 uH + - 20% 0.0648 Ohms 3.0 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-270M 27.00 uH + - 20% 0.0459 Ohms 3.4 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-220M 22.00 uH + - 20% 0.0432 Ohms 3.6 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-180M 18.00 uH + - 20% 0.0392 Ohms 3.9 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-150M 15.00 uH + - 20% 0.0270 Ohms 4.5 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-120M 12.00 uH + - 20% 0.0243 Ohms 4.9 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-100M 10.00 uH + - 20% 0.0216 Ohms 5.4 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-7R6M 7.60 uH + - 20% 0.0200 Ohms 5.2 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-6R1M 6.10 uH + - 20% 0.0176 Ohms 6.6 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-4R7M 4.70 uH + - 20% 0.0158 Ohms 6.8 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-3R5M 3.50 uH + - 20% 0.0135 Ohms 7.5 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-2R4M 2.40 uH + - 20% 0.0115 Ohms 8.0 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-1R2M 1.20 uH + - 20% 0.007 Ohms 9.8 Amps 12x12mm. H=8mm $1.25
Buy Now

  SP-1207-series Datasheet 0.00
Call for Price
... more info
Call for price


Need Power Inductors? CWS delivers the finest in surface mount inductors and standard inductors, power transformers, Common Mode Chokes, Ceramic Chip Inductors and Wire Wound Chip Inductors. CWS can supply all of your filtering needs as well, including EMI Filters, RFI Filters, LC Filter Inductors, and Common Mode Filters. From Transmission Line Transformers to power transformers, CWS is the source to call!
