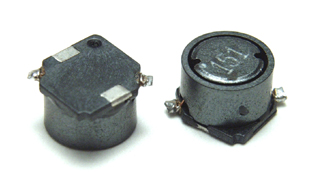

SB 0704 Series - 4.5mm High Inductance Surface Mount Inductor / Choke coil

SB 0704 Series -Shielded 4.5mm High Inductance Surface Mount Inductor

NEW PRODUCT. Order samples on-line. FREE samples available to large OEMs

  • Low Profile: 4.5mm thick surface mount inductors
  • Small size: 7 x 7mm,
  • Lowest cost: factory direct pricing
  • Highest performance
  • High energy storage and very low resistance
  • Flat top for reliable surface mount pick and place
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available
SPECIFICATIONS
Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Outline Drawing and PCB Land Pattern
Environmental Specifications.
Part Numbering


SB 0704 1R0 N

SB- Shielded Inductor Type

0704 - Dimension: 7mm O.D., 4.5mm height

1R0 - Inductance: 1.0 uH

N - Tolerance: +-30%,
M for +-20%,
K for +-10%

Electrical Characteristics:

1) Tested at 1Khz, 0.25 Vrms
2) Operating Temperature range: -40 deg C to +85 deg C
3) All electrical specifications measured at 25 deg C.

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 Dimension Price
  SB-.800704-102M 1,000.00 uH + - 20% 2.28 ohms 0.14 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-681M 680.00 uH + - 20% 1.48 ohms 0.20 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-471M 470.00 uH + - 20% 1.05 ohms 0.22 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-331M 330.00 uH + - 20% 0.74 ohms 0.25 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-221M 220.00 uH + - 20% 0.52 ohms 0.33 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-151M 150.00 uH + - 20% 0.34 ohms 0.4 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-101M 100.00 uH + - 20% 0.25 ohms 0.5 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-680M 68.00 uH + - 20% 0.175 ohms 0.60 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-470M 47.00 uH + - 20% 0.125 ohms 0.75 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-330M 33.00 uH + - 20% 0.096 ohms 0.82 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-220M 22.00 uH + - 20% 0.061 ohms 0.9 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-150M 15.00 uH + - 20% 0.052 ohms 1.1 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-100M 10.00 uH + - 20% 0.039 ohms 1.3 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-6R8M 6.80 uH + - 20% 0.036 ohms 1.7 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-4R7M 4.70 uH + - 20% 0.03 ohms 2.0 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now

  SB-0704-3R3M 3.30 uH + - 20% 0.02 ohms 2.5 Amps 7 x 7mm x 4.5mm ht $0.80
Buy Now
