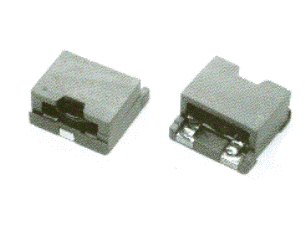

SE 1306 Series - 6.5mm High Current Flat Wire Surface Mount Inductor / Choke coil
|
SE
1306 Series -Shielded 6.5mm High Current Flat Wire Surface Mount
Inductor / Choke Coil
NEW PRODUCT. Order samples on-line.
FREE samples available to large OEMs
- Low Profile:
6.5mm thick surface mount inductors
- Small size:
12.9 x 12.9mm,
- Lowest
cost: factory direct pricing
- Highest
performance
- High energy
storage and very low resistance
- Flat top
for reliable surface mount pick and place
- Robust
temperature deflection prevents damage during solder reflow
- Custom
versions available
- Samples
of all values are available
|
|
|
|
|
|
Part
Numbering
|
|
|
SE 1306 1R0 N
SE-
Shielded Inductor Type
1306 - Dimension: 12.9mm O.D., 6.5mm height
1R0 - Inductance: 1.0 uH
N - Tolerance: +-30%,
M for +-20%,
K for +-10%
|
|
Electrical
Characteristics:
1)
Tested at 100 Khz, 0.5 Vrms
2) Operating Temperature range: -40 deg C to +85 deg C
3) All electrical specifications measured at 25 deg C.
|
|
ELECTRICAL
SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact
us.
The prices
shown below are for low volume quantity. Please call
800-377-3244 or
email sales@coilws.com for
larger volume OEM pricing.
|
Displaying 1 to 6 (of 6 products)
(Searching Part Numbers, Inductance, Current fields)
| |
Part Number |
Inductance |
Tolerance
±20% |
Max D.C.
Resistance
(mΩ) |
Max D.C.
Current
(Amp) |
Dimension (mm) |
Price |
|
| |
SE-1306-100M |
10.00 uH |
±20% |
13.5 milli ohms |
5.0 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
| |
SE-1306-8R2M |
8.20 uH |
+ - 20% |
11.4 milli ohms |
5.8 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
| |
SE-1306-6R0M |
6.00 uH |
+ - 20% |
8.0 milli ohms |
6.7 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
| |
SE-1306-4R0M |
4.00 uH |
+ - 20% |
5.4 milli ohms |
8.3 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
| |
SE-1306-2R5M |
2.50 uH |
+ - 20% |
3.4 milli ohms |
10 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
| |
SE-1306-1R5M |
1.50 uH |
+ - 20% |
2.5 milli ohms |
14 Amps |
12.9x12.9x6.5 MAX |
$3.50
|
|
Displaying 1 to 6 (of 6 products)
|
|
