453226 Series Power Inductor / CHOKE COIL

453226 Series SMI - CHOKE COILS POWER CHIP
  • Surface Mount Inductors
  • Designed for smallest possible size, lowest cost and highest performance
  • High Energy storage and very low resistance
  • Flat top for reliable surface mounting
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • samples of all values are available

SPECIFICATIONS

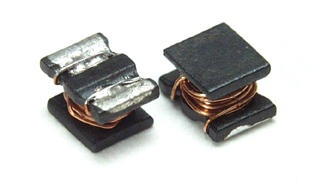

Click the button to see a photo of this product's part. We wind anything to meet your needs.
Dimensions Specifications.
Environmental Specifications.
Tape and Reel Specifications

CONSTRUCTION (m/m)


COIL CODE



Smaller size version is available. Please call factory for details.

PACKAGING : 500 PCS PER REEL

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call  800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.



(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 SRF Dimension Price
  453226-102K 1,000.00 uH + - 10% 25.0 Ohms 50 mA 2.0 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-101K 100.00 uH + - 10% 2.5 Ohms 160 mA 6.8 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-680K 68.00 uH + - 10% 1.9 Ohms 180 mA 8.4 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-470K 47.00 uH + - 10% 1.5 Ohms 220 mA 10 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-330K 33.00 uH + - 10% 1.2 Ohms 270 mA 12 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-220K 22.00 uH + - 10% 0.94 Ohms 320 mA 15 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-150K 15.00 uH + - 10% 0.73 Ohms 360 mA 19 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-100K 10.00 uH + - 10% 0.56 Ohms 400 mA 23 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-6R8K 6.80 uH + - 10% 0.5 Ohms 450 mA 31 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-4R7K 4.70 uH + - 10% 0.4 Ohms 500 mA 38 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-3R3M 3.30 uH + - 20% 0.35 Ohms 500 mA 47 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-2R2M 2.20 uH + - 20% 0.3 Ohms 500 mA 62 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-1R5M 1.50 uH + - 20% 0.3 Ohms 500 mA 85 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now

  453226-1R0M 1.00 uH + - 20% 0.2 Ohms 500 mA 120 Mhz 3.2x4.5mm. H=2.6mm $0.70
Buy Now


Need Power Inductors? CWS delivers the finest in surface mount inductors and standard inductors, power transformers, Common Mode Chokes, Ceramic Chip Inductors and Wire Wound Chip Inductors. CWS can supply all of your filtering needs as well, including EMI Filters, RFI Filters, LC Filter Inductors, and Common Mode Filters. From Transmission Line Transformers to power transformers, CWS is the source to call!
