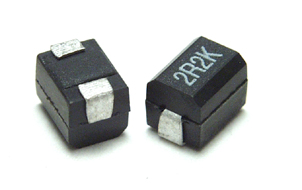

SI 1210 Series Chip Inductor / WOUND CHIP INDUCTOR

SI 1210 Series Inductor- WIRE WOUND CHIP INDUCTOR

Surface Mount Inductors
Designed for smallest possible size, lowest cost and highest performance
High Energy storage and very low resistance
Flat top for reliable surface mounting
Robust temperature deflection prevents damage during solder reflow
Custom versions available
samples of all values are available

SPECIFICATIONS

	Click the button to see examples of our custom wound products. We wind anything to meet your needs.

	Environment/ & Soldering Specifications.
	Tape and Reel Specifications

PCB PATTERN

CONSTRUCTION (m/m)

SCHEMATIC DIAGRAM

ELECTRICAL SPECIFICATION -
Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.

Displaying 1 to 41 (of 41 products)

(Searching Part Numbers, Inductance, Current fields)

Part Number	Inductance	Tolerance	Max D.C. Resistance	Max D.C. Current	LQ Test Freq	SRF	Min Q	Dimension	Price
SI-1210-221	220.00 uH	+ - 20%	21.00 Ohms	50 mA	0.796 Mhz	7 Mhz	20	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-181	180.00 uH	+ - 20%	17.00 Ohms	65 mA	0.796 Mhz	7 Mhz	20	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-151	150.00 uH	+ - 20%	15.00 Ohms	65 mA	0.796 Mhz	8 Mhz	20	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-121	120.00 uH	+ - 20%	11.00 Ohms	70 mA	0.796 Mhz	10 Mhz	20	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-101	100.00 uH	+ - 20%	10.00 Ohms	40 mA	0.796 Mhz	10 Mhz	20	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-820	82.00 uH	+ - 20%	10.00 Ohms	45 mA	2.52 Mhz	11 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-680	68.00 uH	+ - 20%	9.00 Ohms	50 mA	2.52 Mhz	12 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-560	56.00 uH	+ - 20%	8.00 Ohms	55 mA	2.52 Mhz	13 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-470	47.00 uH	+ - 20%	7.00 Ohms	60 mA	2.52 Mhz	15 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-390	39.00 uH	+ - 20%	6.40 Ohms	65mA	2.52 Mhz	16 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-330	33.00 uH	+ - 20%	5.60 Ohms	70 mA	2.52 Mhz	17 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-270	27.00 uH	+ - 20%	5.00 Ohms	80 mA	2.52 Mhz	20 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-220	22.00 uH	+ - 20%	3.70 Ohms	110 mA	2.52 Mhz	20 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-180	18.00 uH	+ - 20%	3.30 Ohms	120 mA	2.52 Mhz	20 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-150	15.00 uH	+ - 20%	2.80 Ohms	130 mA	2.52 Mhz	20 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-120	12.00 uH	+ - 20%	2.50 Ohms	140 mA	2.52 Mhz	20 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-100	10.00 uH	+ - 20%	2.10 Ohms	150 mA	7.96 Mhz	30 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-8R2	8.20 uH	+ - 20%	2.00 Ohms	200 mA	7.96 Mhz	35 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-6R8	6.80 uH	+ - 20%	1.80 Ohms	180 mA	7.96 Mhz	35 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-5R6	5.60 uH	+ - 20%	1.60 Ohms	200 mA	7.96 Mhz	30 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-4R7	4.70 uH	+ - 20%	1.50 Ohms	250 mA	7.96 Mhz	37 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-3R9	3.90 uH	+ - 20%	1.30 Ohms	250 mA	7.96 Mhz	37 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-3R3	3.30 uH	+ - 20%	1.20 Ohms	260 mA	7.96 Mhz	40 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-2R7	2.70 uH	+ - 20%	1.10 Ohms	290 mA	7.96 Mhz	45 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-2R2	2.20 uH	+ - 20%	1.00 Ohms	320 mA	7.96 Mhz	50 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-1R8	1.80 uH	+ - 20%	0.90 Ohms	350 mA	7.96 Mhz	60 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-1R5	1.50 uH	+ - 20%	0.85 Ohms	370 mA	7.96 Mhz	70 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-1R2	1.20 uH	+ - 20%	0.75 Ohms	390 mA	7.96 Mhz	85 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-1R0	1.00 uH	+ - 20%	0.70 Ohms	400 mA	7.96 Mhz	90 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R82	0.82 uH	+ - 20%	0.65 Ohms	450 mA	25.2 MHz	140 MHz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R68	0.68 uH	+ - 20%	0.60 Ohms	450 mA	25.2 MHz	160 MHz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R56	0.56 uH	+ - 20%	0.55 Ohms	450 mA	25.2 MHz	180 MHz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R47	0.47 uH	+ - 20%	0.50 Ohms	450 mA	25.2 MHz	220 MHz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R39	0.39 uH	+ - 20%	0.45 Ohms	450 mA	25.2 Mhz	250 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R33	0.33 uH	+ - 20%	0.40 Ohms	450 mA	25.2 Mhz	300 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R27	0.27 uH	+ - 20%	0.36 Ohms	450 mA	25.2 Mhz	320 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R22	0.22 uH	+ - 20%	0.32 Ohms	450 mA	25.2 Mhz	350 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R18	0.18 uH	+ - 20%	0.28 Ohms	450 mA	25.2 Mhz	400 Mhz	30	2.9x205mm. H=2.2mm	$0.95
SI-1210-R15	0.15 uH	+ - 20%	0.25 Ohms	450 mA	25.2 Mhz	450 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R12	0.12 uH	+ - 20%	0.22 Ohms	450 mA	25.2 Mhz	500 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
SI-1210-R10	0.10 uH	+ - 20%	0.44 Ohms	450 mA	25.2 Mhz	700 Mhz	30	2.9x2.5mm. H=2.2mm	$0.95
