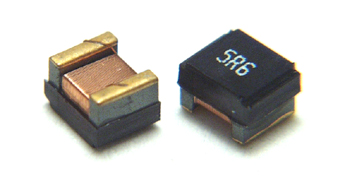

CCI 1008 Series Chip Inductor / WOUND CERAMIC CHIP INDUCTOR

CCI 1008 Series Inductor - WOUND CERAMIC CHIP INDUCTOR
For High Frequency Applications. Up to 200 Mhz
  • Surface Mount Ceramic Inductors
  • Designed for smallest possible size, lowest cost and highest performance
  • High Energy storage and very low resistance
  • Flat top for reliable surface mounting
  • Robust temperature deflection prevents damage during solder reflow
  • Custom versions available
  • Samples of all values are available

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Dimensions & Material Specifications.
Environmental Specifications.
Tape and Reel Specifications
  • Industry standard 1008 packaging
  • Samples for engineering prototypes can be ordered on-line by clicking "buy" below
  • FREE Samples for large OEM
  • Very low cost (factory direct pricing) for large volume users.
  • Fast Delivery : 2 weeks typical for large volume. Stock for lower volume


PCB PATTERN


CONSTRUCTION (m/m)


SCHEMATIC DIAGRAM

ELECTRICAL SPECIFICATION -

Tolerance of +/- 5% and +/- 10% are also available. Please contact us.

The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.


(Searching Part Numbers, Inductance, Current fields)
  Part Number Inductance Tolerance Max D.C.
Resistance		 Max D.C.
Current		 LQ Test
Freq		 SRF Min Q Dimension Price
  CCI-1008-1R0 1,000.00 uH   3.60 Ohms 90 mA 25 Mhz 310 Mhz 35 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R91 910.00 uH   3.25 Ohms 90 mA 25 Mhz 330 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R82 820.00 uH   2.75 Ohms 150 mA 25 Mhz 350 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R68 680.00 uH   2.45 Ohms 200 mA 25 Mhz 380 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R56 560.00 uH   1.45 Ohms 300 mA 25 Mhz 430 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R47 470.00 uH   1.30 Ohms 400 mA 25 Mhz 480 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R39 390.00 uH   1.20 Ohms 400 mA 25 Mhz 530 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R33 330.00 uH   0.90 Ohms 500 mA 25 Mhz 570 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R27 270.00 uH   0.75 Ohms 500 mA 25 Mhz 650 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R22 220.00 uH   0.45 Ohms 500 mA 25 Mhz 730 Mhz 45 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R18 180.00 uH   0.33 Ohms 600 mA 25 Mhz 800 Mhz 50 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R15 150.00 uH   0.22 Ohms 500 mA 25 Mhz 880 Mhz 50 2.5x2.0mm. H1.6mm $0.95
Buy Now

  CCI-1008-R12 120.00 uH   0.20 Ohms 500 mA 25 Mhz 950 Mhz 50 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-R10 100.00 uH   0.18 Ohms 500 mA 100 Mhz 1100 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-82N 82.00 uH   0.18 Ohms 600 mA 100 Mhz 1100 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-68N 68.00 uH   0.15 Ohms 600 mA 100 Mhz 1300 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-56N 56.00 uH   0.12 Ohms 600 mA 100 Mhz 1350 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-47N 47.00 uH   0.10 Ohms 600 mA 100 Mhz 1500 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-39N 39.00 uH   0.10 Ohms 600 mA 100 Mhz 1500 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-33N 33.00 uH   0.10 Ohms 600 mA 100 Mhz 1700 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-27N 27.00 uH   0.10 Ohms 600 mA 100 Mhz 1800 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-22N 22.00 uH   0.10 Ohms 600 mA 100 Mhz 2500 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-18N 18.00 uH   0.10 Ohms 600 mA 100 Mhz 2700 Mhz 60 2.5X2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-15N 15.00 uH   0.08 Ohms 600 mA 100 Mhz 2700 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-12N 12.00 uH   0.08 Ohms 600 mA 100 Mhz 3600 Mhz 60 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-10N 10.00 uH   0.08 Ohms 600 mA 100 Mhz 4300 Mhz 50 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-6N8 6.80 uH   0.06 Ohms 600 mA 100 Mhz 5500 Mhz 50 2.5x2.0mm. H=1.6mm $0.95
Buy Now

  CCI-1008-3N3 3.30 uH 5%, 10% or 20% 0.06 Ohms 600 mA 100 Mhz 6000 Mhz 50 2.5x2.0mm. H=1.6mm $0.95
Buy Now
