Power Magnetics

- Available as through hole vertical mounting only
- Single layer wound on high permeability ferrite cores for widest frequency range
- Spacer provides 3mm creepage spacing to meet UL, CSA and IEC safety specifications
- All materials used are UL 94VO recognized.
- Dimension : Outside Diameter: 32 mm. Width : 23 mm
- Inductance range from: 0.2 mH to 11 mH
- DCR : 8 milli ohms to 290 milli ohms
- Suitable for SMPS in 100 to 400 Khz range

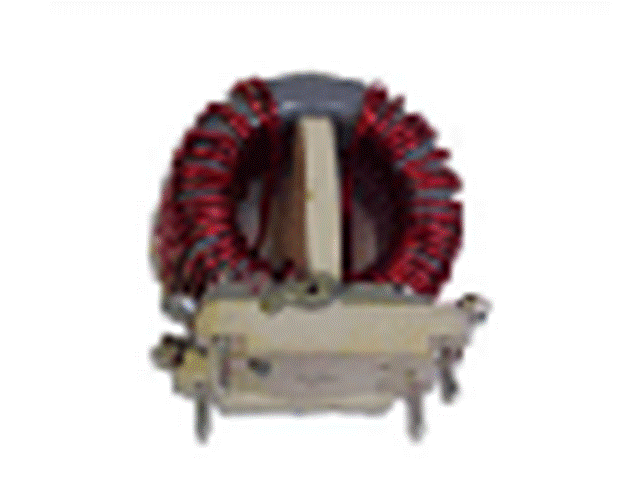

PM Series: 1 Amps to 13 Amps Common Mode Line Choke
High Inductance Series: 0.28 mH to 3.5 mH

Direct Cross to Coilcraft P3213-A, P3214-A, P3215-A, P3216-A, P3217-A,
P3218-A, P3219-A, P3220-A, P3221-A, P3222-A, P3223-A, P3224-A
  • Separated windings for minimum interwinding capacitance
  • Single layer windings for highest common mode impedance over the widest frequency range
  • Spacer provides 3 mm creepage distance for UL, CSA, IEC compliance
  • All materials used are UL-94V0 recognized
  • Available in 2 series:- PM-S for Standard Inductance and PM-H for High Inductance
  • 200 °C insulated solid wires used for high temperature operation
  • Operating temperature: - 40 °C to + 85 °C. Please call factory for 125 °C types
  • Suitable for 100 Khz to 400 Khz in switching frequency
  • Available in vertical header mount for ease in PCB assembly
  • Application includes power line filtering, EMI/RFI for switch mode power supplies
  • Please go to cross reference to see cross to Coilcraft equivalent parts.

SPECIFICATIONS

Click the button to see examples of our custom wound products. We wind anything to meet your needs.
Construction Drawing, Footprint and Schematics for PM-S and PM-H Series
Download .PDF Engineering Print for PM-H (36mm x 23mm. Ht = 36mm)
Download .PDF Engineering Print for PM-S (32mm x 16mm. Ht = 31mm)

On Line Shopping


Drawing, Foot print and Schematic for:

  • PM-H Series
  • PM-S Series

Part Numbering

PM-S- 281U - 13A

PM = Header common mode
S = Standard Inductance
( H = High Inductance)
281U = 0.28 mH
13A = 13 Amps

Notes:

1) The prices shown below are for low volume ( 1 to 10 pieces) quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing. High volume quantity ( 1K and up) prices are under $1.50 each.

2) Please click the links above to view dimensions, outline drawings, footprints and schematics

3) Interwinding Isolation is 1250 Volts rms



(Searching Part Numbers, Inductance, Current fields)
Part Number Inductance Max D.C.
Resistance		 Current
Rating		 SRF
Typical		 Max
Leakage
Inductance		 CrossRef(Coilcraft/
JW Miller/Bourns)		 Price
PM-16-503U-2.3A 50.00 mH 450.0 2.3A   230.0 uH 8116-RC $5.00
Buy Now

PM-16-303U-2.5A 30.00 mH 330.0 2.5A   136.0 uH 8109-RC $5.00
Buy Now

PM-16-203U-3A 20.00 mH 210.0 3A   95.0 uH 8110-RC $5.00
Buy Now

PM-16-123U-4A 12.00 mH 110.0 4.0A   57.0 uH 8111-RC $5.00
Buy Now

PM-16-113U-1.5A (PM-H-113U-1.5A) 11.00 mH 184.0 milli- ohm 1.5 A 125Khz 145.86 uH P3219-AL $5.00
Buy Now

PM-12-103U-2.4A 10.00 mH 170.0 2.4A   45.0 uH 8104-RC $5.00
Buy Now

PM-16-802U-5.6A 8.00 mH 55.0 5.6A   38.0 uH 8112-RC $5.00
Buy Now

PM-16-732U-9.3A 7.30 mH 32.0 9.3A   31.0 uH 8118-RC $5.00
Buy Now

PM-16-702U-2.5A (PM-H-702U-2.5A) 7.20 mH 93.0 milli- ohm 2.5 A 225Khz 68.6 uH P3220-AL $5.00
Buy Now

PM-12-702U-2.8A 7.00 mH 120.0 2.8A   32.0 uH 8105-RC $5.00
Buy Now

PM-12-502U-3.7A 5.00 mH 70.0 3.7A   23.0 uH 8106-RC $5.00
Buy Now

PM-16-502U-9A 5.00 mH 22.0 9.0A   25.0 uH 8113-RC $5.00
Buy Now

M-10-402U-1.7A 4.00 mH 180..0 1.70A   27.0 uH 8101-RC $5.00
Buy Now

PM-25-402U-15A 4.00 mH 12.0 15.0A   16.0 8119-RC $5.00
Buy Now

PM-16-372U-4A (PM-H-372U-4A) 3.70 mH 0.07 ohm 4 A 400 Khz 60 uH   $5.00
Buy Now

PM-16-372U-3.2A (PM-H-372U-3.2A) 3.70 mH 43.0 milli- ohm 3.2 A 400 Khz 37.84 uH P3221-AL $5.00
Buy Now

PM-12-352U-1.5A (PM-S-352U-1.5A) 3.50 mH 80.0 milli-ohm 1.5 A 500 Khz 50 uH P3213-AL $5.00
Buy Now

PM-10-252U-2.4A 2.50 mH 90.0 2.40   17.0 uH 8102-RC $5.00
Buy Now

PM-16-252U-13A 2.50 mH 11.0 13.0A   13.0 uH 8114-RC $5.00
Buy Now

PM-25-242U-17A 2.40 mH 8.0 17.0A   10.0 uH 8120-RC $5.00
Buy Now

PM-16-222U-5A (PM-H-222U-5A) 2.20 mH 0.04 ohm 5 A 600 Khz 35 uH P3222-AL $5.00
Buy Now

PM-12-182U-6.6A 1.82 mH 22.0 6.6A   9.0 uH 8107-RC $5.00
Buy Now

PM-12-182U-5A (PM-S-182U-5A) 1.80 mH 0.05 ohm 5 A 900 Khz 20 uH   $5.00
Buy Now

PM-12-172U-2A (PM-S-172U-2A) 1.70 mH 0.065 ohm 2 A 850 Khz 32 uH P3214-AL $5.00
Buy Now

PM-12-152U-3.2A (PM-S-152U-3.2A) 1.50 mH 18.0 milli-ohm 3.2 A 1.2 Mhz 22 uH   $5.00
Buy Now

PM-16-122U-16A 1.20 mH 6.0 16.0A   6.0 uH 8115-RC $5.00
Buy Now

PM-12-102U-3.2A (PM-S-102U-3.2A) 1.00 mH 15.3milli-ohm 3.2 A 1.2 Mhz 23 uH P3215-AL $5.00
Buy Now

PM-16-102U-8A (PM-H-102U-8A) 1.00 mH 0.02 ohm 8 A 900 Khz 20 uH P3223-AL $5.00
Buy Now

PM-10-102U-4.8A 1.00 mH 25.0 4.8A   7.0 uH 8103-RC $5.00
Buy Now

PM-12-103U-10A 1.00 mH 10.0 10.0A   4.5 uH 8108-RC $5.00
Buy Now

PM-25-102U-20A 1.00 mH 7.0 20.0A   4.0 8121-RC $5.00
Buy Now

PM-12-751U-5A (PM-S-751U-5A) 0.75 mH 9.25 milli- ohm 5 A 1.3 Mhz 19 uH P3216-AL $5.00
Buy Now

PM-16-581U-13A (PM-H-581U-13A) 0.58 mH 10 milli- ohm 13 A 1.15Mhz 6.32 uH P3224-AL $5.00
Buy Now

PM-12-431U-8A (PM-S-431U-8A) 0.43 mH 4.26 mill-ohm 8 A 1.75 Mhz 6.2 uH P3217-AL $5.00
Buy Now

PM-12-281U-13A (PM-S-281U-13A) 0.28 mH 2.9 milli-ohm 13 A 2 Mhz 21 uH P3218-AL $5.00
Buy Now
