POWER CHOKE : R0612 SERIES - LOW COST RADIAL LEADED POWER INDUCTORS

1.0 uH to 82 uH. Outside Diameter: 10mm. UL tube or PVC wrapped
290 mA to 1.73 Amps. DCR: 0.145 to 3.5 ohms

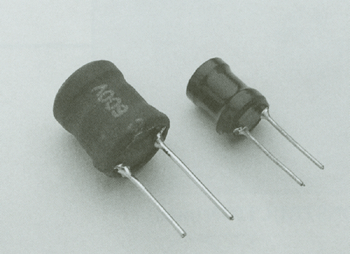

Power Inductor / Chokes - R0612 SERIES Radial Leaded Power Inductor

VERY LOW COST and high efficiency power inductors and chokes
Ideal for switch mode output chokes, DC/DC converters and inverters, EMI suppression, smoothing chokes, etc
UL Approved tubing or PVC warp to protect windings
Inductance range:1.0 uH to 82 uH
Current rating: 290 mA to 1.73 Amps
DCR : 0.145 ohms to 3.5 ohms. SRF: 20 to 155 Mhz

SPECIFICATIONS

	Click the button to see examples of our custom wound products. We wind anything to meet your needs.


	Tape and Reel Specs

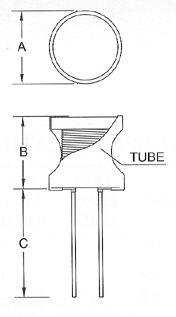

CONSTRUCTION (mm)

ELECTRICAL SPECIFICATION

Dimensions:

A ( Diameter) = 8.0 mm max.
B ( Height) = 11.5 mm max.
C (Lead length) = 10 mm min.
D (Lead spacing) = 3.0 + - 1.0 mm
E ( Lead diameter) = 0.65 + - 0.1 mm

PART NUMBERING

R - 0612 - 3R9 K

R = Radial Power Choke
06 = Nominal O.D. in mm
12 = Nominal Height in mm
3R9 = Inductance of 3.9 uH
K = 10% ( 5% also available)

1)The prices shown below are for low volume quantity. Please call 800-377-3244 or
email sales@coilws.com for larger volume OEM pricing.
2)The data shown below can be sorted by Part Number, Inductance, Rated Current, DRC, or any of the columns. To sort, please click on the column headings ( first row ). To sort Part Number in ascending order, click Part Number once. Click Part Number once again to sort it in descending order. Click on Inductance to sort Inductance column in ascending or descending order, etc..

Displaying 1 to 23 (of 23 products)

(Searching Part Numbers, Inductance, Current fields)

Part Number	Inductance	Tolerance	Max D.C. Resistance	Max D.C. Current	Test Freq	SRF	Dimension (O.D X Ht) (inches)	Price
R0612-820k	82.00 uH	+ - 10%	3.500ohms	290 mA	1 KHz	20 MHz	0.27/0.38	$0.55
R0612-680k	68.00 uH	+ - 10%	2.500ohms	310 mA	1 KHz	22 MHz	0.27/0.38	$0.55
R0612-560k	56.00 uH	+ - 10%	1.750ohms	320 mA	1 KHz	24 MHz	0.27/0.38	$0.55
R0612-470k	47.00 uH	+ - 10%	1.650ohms	335 mA	1 KHz	25 MHz	0.27/0.38	$0.55
R0612-330k	33.00 uH	+ - 10%	1.500ohms	370 mA	1 KHz	29 MHz	0.27/0.38	$0.55
R0612-270k	27.00 uH	+ - 10%	1.200ohms	370 mA	1 KHz	30 MHz	0.27/0.38	$0.55
R0612-220k	22.00 uH	+ - 10%	1.050ohms	390 mA	1 KHz	35 MHz	0.27/0.38	$0.55
R0612-180k	18.00 uH	+ - 10%	0.940 ohms	410 mA	1 KHz	41 MHz	0.27/0.38	$0.55
R0612-150k	15.00 uH	+ - 10%	0.850 ohms	430 mA	1 KHz	45 MHz	0.27/0.38	$0.55
R0612-120k	12.00 uH	+ - 10%	0.820 ohms	460 mA	1 KHz	48 MHz	0.27/0.38	$0.55
R0612-100k	10.00 uH	+ - 10%	0.750 ohms	460 mA	1 KHz	50 MHz	0.27/0.38	$0.55
R0612-8R2K	8.20 uH	+ - 10%	0.700 ohms	480 mA	1 KHz	55 MHz	0.27/0.38	$0.55
R0612-6R8K	6.80 uH	+ - 10%	0.610 ohms	500 mA	1 KHz	60 MHz	0.27/0.38	$0.55
R0612-5R6K	5.60 uH	+ - 10%	0.550 ohms	530 mA	1 KHz	65 MHz	0.27/0.38	$0.55
R0612-4R7K	4.70 uH	+ - 10%	0.500 ohms	550 mA	1 KHz	70 MHz	0.27/0.38	$0.55
R0612-3R9K	3.90 uH	+ - 10%	0.250 ohms	860 mA	1 KHz	80 MHz	0.27/0.38	$0.55
R0612-3R3K	3.30 uH	+ - 10%	0.230 ohms	900 mA	1 KHz	85 MHz	0.27/0.38	$0.55
R0612-2R7K	2.70 uH	+ - 10%	0.210 ohms	960 mA	1 KHz	95 MHz	0.27/0.38	$0.55
R0612-2R2K	2.20 uH	+ - 10%	0.190 ohms	1030 mA	1 KHz	105 MHz	0.27/0.38	$0.55
R0612-1R8K	1.80 uH	+ - 10%	0.175 ohms	1070 mA	1 KHz	115 MHz	0.27/0.38	$0.55
R0612-1R5K	1.50 uH	+ - 10%	0.160 ohms	1130 mA	1 KHz	130 MHz	0.27/0.38	$0.55
R0612-1R2K	1.20 uH	+ - 10%	0.150 ohms	1670 mA	1 KHz	145 MHz	0.27/0.38	$0.55
R0612-1R0K	1.00 uH	+ - 10%	0.145 ohms	1730 mA	1 KHz	155 MHz	0.27/0.38	$0.55

Displaying 1 to 23 (of 23 products)
