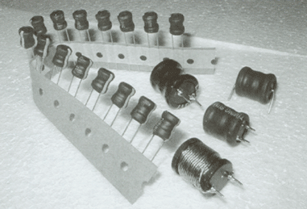

Inductor / Chokes - R1016 SERIES Radial
Leaded Power Inductor
|
- VERY
LOW COST and
high efficiency power inductors and chokes
- Ideal for
switch mode output chokes, DC/DC converters and inverters, EMI
suppression, smoothing chokes, etc
- UL Approved
tubing or PVC wrap to protect windings
- Inductance
range:1 uH to 820 uH
- Current
Rating: 26 mA to 550 mA
- DCR : 3
milli ohms to 0.745 ohms. SRF : 1 Mhz to 65 Mhz
|
|
|
|
|
| SPECIFICATIONS
|
CONSTRUCTION
(mm)
 |
|
|
|
| ELECTRICAL
SPECIFICATION
Dimensions:
A
( Diameter) = 13 mm max.
B ( Height) = 16 mm max.
C (Lead length) = 10 mm min.
D (Lead spacing) = 5.0 + - 0.5 mm
E ( Lead diameter) = 0.8 + - 0.1 mm
|
PART
NUMBERING
R-1016-
3R9 K
R
= Radial Power Choke
10= Nominal O.D. in mm
16 = Nominal Height in mm
3R9 = Inductance of 3.9 uH
K = 10% ( 5% also available) |
|
|
|
1)The
prices shown below are for low volume quantity. Please call
800-377-3244 or
email sales@coilws.com for larger
volume OEM pricing.
2)The data shown below can be sorted by Part Number, Inductance, Rated Current, DRC, or any of the columns. To sort, please click on the column headings ( first row ). To sort Part Number in ascending order, click Part Number once. Click Part Number once again to sort it in descending order. Click on Inductance to sort Inductance column in ascending or descending order, etc..
|
