Surface Mount Power Inductors
Fully RoHS Compliance



<<< New Product >>>

80 Amps to 40 Amps High Flux and MPP based SURFACE MOUNT INDUCTORS


These 80 Amps, 60 Amps, 50 Amps and 30 Amps surface mount high current inductors are the highest current in the industry with this small form factor. These inductors are wound using a flat helix wire on High Flux and MPP (Molypermalloy) cores to achieve minimum core loss and highest efficiency. The saturation flux density of these inductors is over 10000 gauss ( 1000 mT). The windings are CWS proprietary flat coil with 2.4 mm width and insulated with 250 °C kapton material. These high current inductors measure 0.38" x 0.52" with a height of 0.21". The inductance is 0.3 uH to 2.0 uH. Please click on the link above to for more details on these inductors.

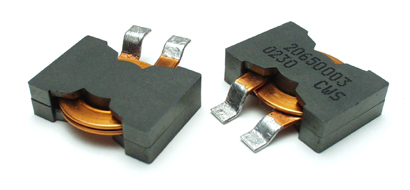

50 Amps to 70 Amps Ferrite based SURFACE MOUNT INDUCTORS


These low profile surface mount high current inductors are based on flat helix wires that can handle up to 70 Amps of current. The kapton based wire's insulation is rated at 250 °C. The inductance range is from 0.6 uH to 1.0 uH. The DCR of these high current inductors is from 0.6 to 2.45 milli-ohms. The PQ shaped ferrite cores used are low loss, gapped, manganese zinc with permeability of 2000. The height of these low profile inductor ranges from 0.285" to 0.45". The dimension is 1.1" x 1.2".

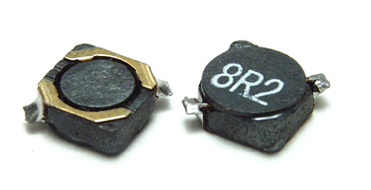

Selection Guide to SHIELDED SURFACE MOUNT INDUCTORS

These are very low cost RoHS Compliance shielded surface mount inductors. The rated current for these high current inductors is from 0.12 Amps to 35 Amps. The height of these low profile inductors ranges from 1.25 mm (0.05") to 8mm. These inductors are wound on ferrite cores. There are thousands of different types of inductors to select from at CWS, covering all common inductance ranges up to 1000 uH. The sizes of these inductors are industry standard. These power inductors can be used as lower cost alternates or second sources to all other major surface mount inductor manufacturers. Our prices are factory direct for high volume. Low volume inductor samples and inductor prototypes are available and can be ordered on line directly through this web site. Free inductor samples are available to large OEMs. Please click on the link above or the photo on the right to get details on these inductors.


Selection Guide to UNSHIELDED SURFACE MOUNT INDUCTORS


These are very low cost RoHS Compliance unshielded surface mount inductors. The rated current of these high current inductors is from 500 mA to 16 Amps. The height of these low profile inductors ranges from 1.2 mm to 7 mm. These inductors are wound on ferrite cores, wire wound ceramic cores, and air coils, including ceramic chip inductors and wire wound chip inductors. There are thousands of different types of inductors to select from CWS covering all common inductance ranges up to 1000 uH. The inductor sizes are industry standard in 1210, 1812, 1008, 0805, etc. These inductors can be used as lower cost alternates or second sources to all other major surface mount inductor manufacturers. Our prices are factory direct for high volume. Low volume inductor samples and inductor prototypes are available and can be ordered on line directly through this web site. Please click on the link above or the photo on the right to get details on these inductors


CX-SERIES PARALLEL SERIES INDUCTOR


Surface mount magnetics that can be used as single or coupled inductors or 1:1 transformers that provide isolation between two windings

SD types are designed around high frequency low loss material.
IP types are lower cost versions of SD offering high saturation flux density
HF offers higher current ratings and higher saturation flux densities than SD or IP types.
Secure 4 terminal mounting
Inductor more versatile inductance combination by series or parallel connections.
Inductance range from: 0 uH to 100 uH
Current range to 1.7 Amps to 15 Amps






Please call factory if you need more details.
