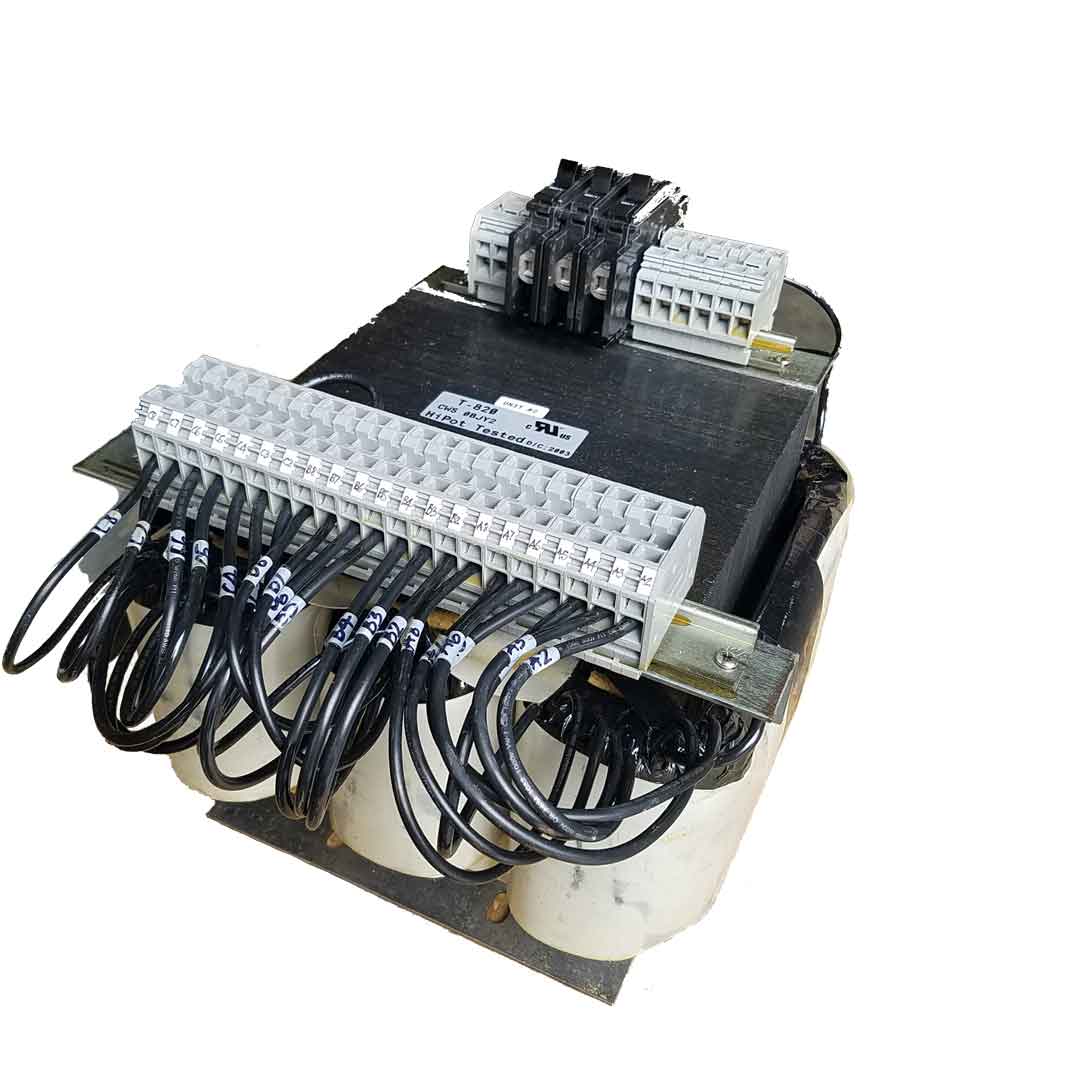

3-Phase Laminated Transformers

The 3-Phase transformers of this type are designed and manufactured here at CWS are with medium to high power or high KVA (Up to 15KVA). They are low cost, input of 115Vac and/or 230 Vac, 50Hz or 60 Hz Power Transformers and maded with silicon steel laminations and they can be designed in both configurations: Delta-to-Wye or Wye-To-Delta.

These 3-phase transformers, which uses suitable material, have low losses for its high initial permeability and these leads to higher and more stable magnetic inductions. As a result of lower losses and high inductions, the 3-phase transformer can perform very well with wide range of ambient temperature when considering high VA-Temperature relationship. These 3-phase transformer has three sets of primary and secondary windings, each set wound around one leg of an 3-phase lamination stacks.

Depending on different applications, they can be made with multiple inputs (or tappings) and multiple outputs with option of protective circuit breakers up to 15 kAmps. Multiple inputs and outputs can be set with jumpers on transformers' coils via standard industrial terminal blocks mounted on top of transformers for easy and quick connection/disconection of desired settings of input and output voltages.

Please click on the link below for a table showing several of our 3-phase transformers we have been manufacturing. Custom design are available to meet any of your requirements on electrical and mechanical specifications. Please contact our sales by email: sales@coilws.com for quote on pricing and details.



There are no products to list in this category.
