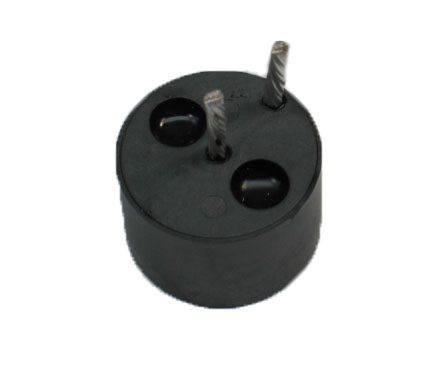

CWS-1MP

MPP Cores used.
Capable of handling very high DC bias current with minimal inductance roll off.
16,000 gauss Saturation Flux.
Through hole mount with pre-tinned leads that can be directly soldered to PCB
We build to meet your specs.
Inductance range from: 3.3uH to 15.5mH
Current range to 3.0 Amps to 23.0 Amps
Also available in MegaFlux, XFLUX, Sendust/KoolMu cores upon request.

Custom MPP - 1MP Power Inductors Series.
Through Hole Mounting Construction



FEATURES:
  • Designed using high saturation and high temperature stability "High Saturation Flux Cores" with distributed air-gap
  • Excellent electromagnetic shielding due to toroidal design
  • Designed for commercial, industrial and military application
  • Low cost designs with pre-tinned leads for PCB through hole mounting
  • Inductance values from 3.3uH to 15.5mH
  • Current rating from 3.0 Amps to 23.0 Amps
  • Temperature Rating: -55 deg C to +125 Deg C
  • Potted version available for military application
  • Custom designs are available to meet your specific requirements

Click HERE to see examples of our custom wound products. We wind anything to meet your needs.

IMPORTANT
1) No tooling or set up fees required for standard parts
2) FREE Samples available for large OEMs
3) Typical Delivery: 4 to 6 weeks


Notes:
1
) The prices shown below are for sample quantity. Please call 800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2
) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3
) Custom designs are available to meet any of your requirements. Please contact us
4
) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.
5 ) "Inductance at 1 Khz" ( 2nd column from left in table below ) is the inductance measured at zero or very low DC bias current.
6 ) "Current Rating" ( 3rd column from left in table below ) is based on a 40 deg C temperature rise at an ambient temperature of 90 deg C. This is the DC bias current through the inductor that will cause the inductor will reach a max. temp. rise of 40 deg C. above ambient with some AIR FLOW.
7 ) The saturation current is at least 5 times the max current listed in 5) or 6) above, so instantaneous high current spikes can be tolerated by these inductors.
8) "Dimensions:"

  • A = Outer Dimension
  • B = Height
  • C = Vertical Mounting Hole Distance
  • D = Lead length
  • E = Lead Width
  • F = Horizontal Mounting Hole Distance


Part Number Inductance Current
Rating
DCR
MAX
SRF
TYP
Dimensions
A/B/C
In inches
Dimensions
D/E/F
In inches
LT Spice
Model
Power
Loss
Altium
Library
Quantity
on hand
Price
CWS-1MP-11849 472.00 uH 15.0 Amps 25.0 milli-Ohms 1 MHz 1.81/0.65 0.87/0.06/0.57       1
Buy Now
CWS-1MP-11400 76.80 uH 5.3 Amps 89.0 milli-Ohms N/A 1.15/0.52 1.50;0.50/0.026/n/a       1
Buy Now
CWS-1MP-11491 67.00 uH 12.0 Amps 12.0 milli-Ohms 3.70 MHz 1.34/0.69 0.50/0.06/1.22       1
Buy Now
CWS-1MP-11740 15.50 mH 3.0 Amps 45.5 milli-Ohms 73.85 KHz 2.54/1.97 3.49/0.04/2.44       1
Buy Now
CWS-1MP-12495 7.00 mH n/a 3.9 milli-Ohms 317 KHz 0.65/0.28 6.0/0.008       1
Buy Now
CWS-1MP-11883 3.30 uH 7.0 Amps 3.6 milli-Ohms n/a 0.85/0.40 0.09/1.00/0.33       1
Buy Now
CWS-1MP-11767 2.83 mH n/a 316.0 milli-Ohms 455 KHz 0.81/0.41 0.51/0.02/0.35       1
Buy Now
CWS-1MP-11761 2.80 uH 23.0 Amps 3.5 milli-Ohms n/a 1.05/0.67 0.50/0.10/0.40       1
Buy Now
CWS-1MP-11766 1.46 mH N/A (CMM) 409.0 milli-Ohms 914 KHz 0.78/0.32 1.00/0.013/n/a       1
Buy Now
