ESO Series

ESO series

A type of switching frequency converters for telecommunication. These converters can be equipped for single or dual outputs. Combined power processing, control, synchronization, and voltage protection allow best cost-reduction, cost-effectiveness, and performance.

ESO
Characteristics:
• High efficiency:90%@ 5V Full Load
• Save 50% board space
• Standard pin out; Fully replaceable
with 2”x1” package
• 2250VDC I/O Insulation
(basic insulation)
• Patented architecture and control circuitry
• outputs of 3.3V, 5V, 12V, 15V,
±12V, ±15V
• High power (up to 20W)
• Free air convection from:
-40°C to +60°C
• Input under-voltage lockout
• Output current limit and short circuit protection

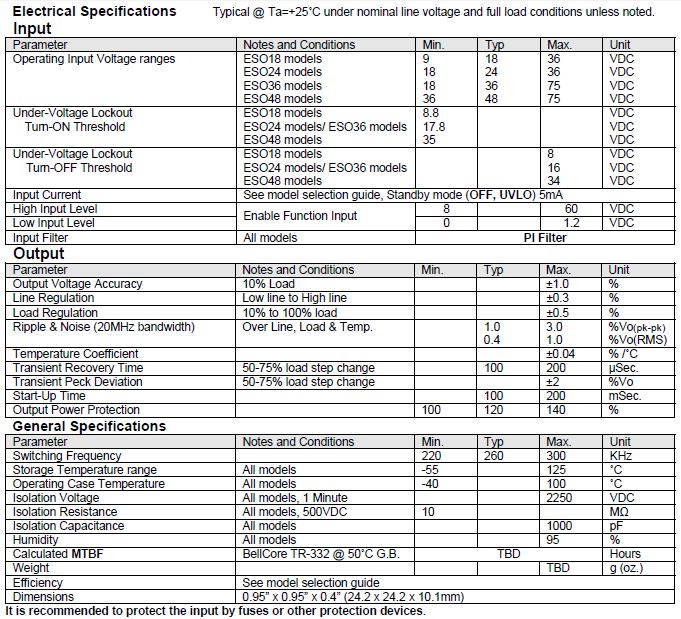

ESOspecs
-RoHS compliant
-UL, IE and EN pending

For technical information refer to:
http://www.coilws.com/images/DC-DCConverters2013.pdf

Please contact us for any questions and more information by email, at sales@coilws.com or call us at 1(800) 377-3244


Part Number Input
Voltage
(V, typ.)
Input
Current
(A, full load)
Output
Voltage
(V, typ.)
Output
Current
(A, full load)
Output
Power
(W)
Efficiency
@ Full Load (typ.)
Quantity
on hand
Price
ESO24033-6-E 18-36 0.94 3.3 6.1 20 88% 0
Buy Now
ESO24050-4-E 18-36 0.93 5 4 20 89% 0
Buy Now
ESO24120-S-E 18-36 0.94 12 1.66 20 88% 0
Buy Now
ESO24150-S-E 18-36 0.94 15 1.33 20 88% 0
Buy Now
ESO24120-D-E 18-36 0.94 ±12 ±0.83 20 88% 0
Buy Now
ESO24150-D-E 18-36 0.94 ±15 ±0.66 20 88% 0
Buy Now
ESO48033-6-E 36-75 0.46 3.3 6.1 20 89% 0
Buy Now
ESO48050-4-E 36-75 0.46 5 4 20 89% 0
Buy Now
ESO48120-S-E 36-75 0.47 12 1.66 20 88% 0
Buy Now
ESO48150-S-E 36-75 0.47 15 1.33 20 88% 0
Buy Now
ESO48120-D-E 36-75 0.47 ±12 ±0.83 20 88% 0
Buy Now
ESO48150-D-E 36-75 0.47 ±15 ±0.66 20 88% 0
Buy Now
ESO18033-6-E 9-36 1.27 3.3 6.1 20 87% 0
Buy Now
ESO18050-4-E 9-36 1.26 5 4 20 88% 0
Buy Now
ESO18120-S-E 9-36 1.27 12 1.66 20 87% 0
Buy Now
ESO18150-S-E 9-36 1.27 15 1.33 20 87% 0
Buy Now
ESO18120-D-E 9-36 1.27 ±12 ±0.83 20 87% 0
Buy Now
ESO18150-D-E 9-36 1.27 ±15 ±0.66 20 87% 0
Buy Now
ESO36033-6-E 18-75 0.63 3.3 6.1 20 88% 0
Buy Now
ESO36050-4-E 18-75 0.62 5 4 20 89% 0
Buy Now
ESO36120-S-E 18-75 0.63 12 1.66 20 87% 0
Buy Now
ESO36150-S-E 18-75 0.63 15 1.33 20 87% 0
Buy Now
ESO36120-D-E 18-75 0.63 ±12 ±0.83 20 87% 0
Buy Now
ESO36150-D-E 18-75 0.63 ±15 ±0.66 20 87% 0
Buy Now
