3 Phase Pad Mounted Transformer

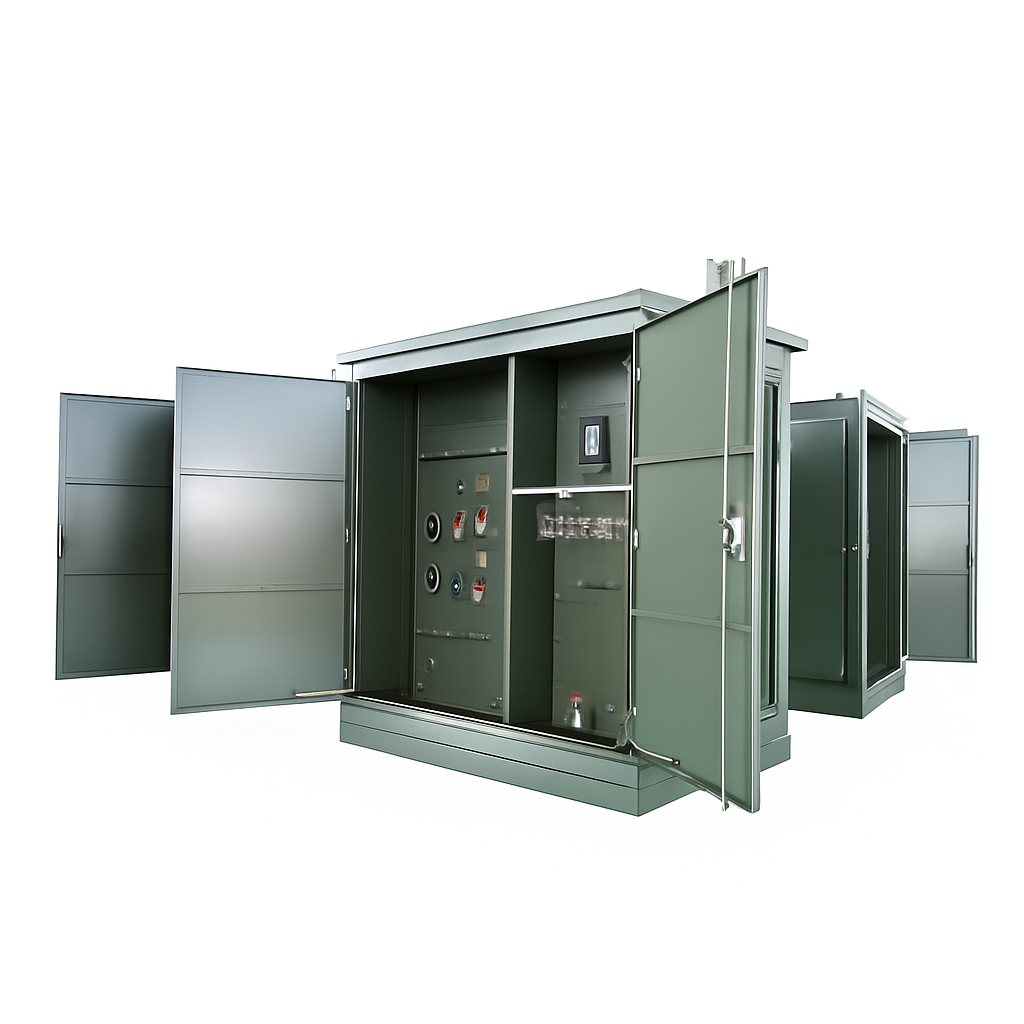

Three Phase Pad Mounted Transformer

A Three-Phase Pad-Mounted Transformer steps down high-voltage electricity from distribution systems to lower voltages for commercial, industrial, and large residential complexes. Installed at ground level in a secure, tamper-resistant enclosure, it delivers safe, efficient, and reliable power in public or high-traffic areas while supporting underground distribution networks

  • · Rated capacity from 30 to 100 MVA
  • · Loop feed or Radial feed Application
  • · Core/coil, three-core with 3 or 5 legged
  • · High Voltage: 2.4 to 35 kV
  • · BIL, up to 150 kV
  • · Low Voltage: 600 V or less
  • · Overcurrent Protection:Bayonet-type expulsion fuses or MagneX interrupter
  • · Mild steel or stainless Steel tank with a custom color
  • · Full access to internal components
  • · Mineral or Seeds oil on request Custom name plate
  • · Temperature rise standard 65 °C, 55 °C or 55/65 °C on request
Three Phase Pad Mounted Transformer

There are no products to list in this category.
