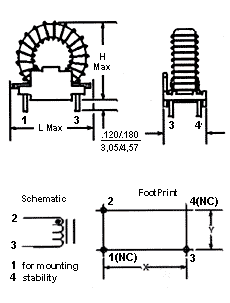

Dimensions for OPC Series of Output Power Inductor

Dimensions for OPC Series of Output Power Inductor



All units shown are in mm ( 1 inch = 25.4mm)

OPC Series
X + - 0.25 (mm)
Y + - 0.25 (mm)
Nominal Lead Diameter (mm)
OPC-1-xx-yy
20.3
10.2
1.37
OPC-2-xx-yy
22.8
15.2
1.37
OPC-3-xx-yy
30.5
17.8
1.37

Example:
OPC-1-180-1.5 will have all the X , Y and lead diameter dimension shown in
OPC-1-xx-yy above.

The X, Y and Lead diameters are based on industry's standard bobbin or headers available from bobbins and headers suppliers in the U.S.
