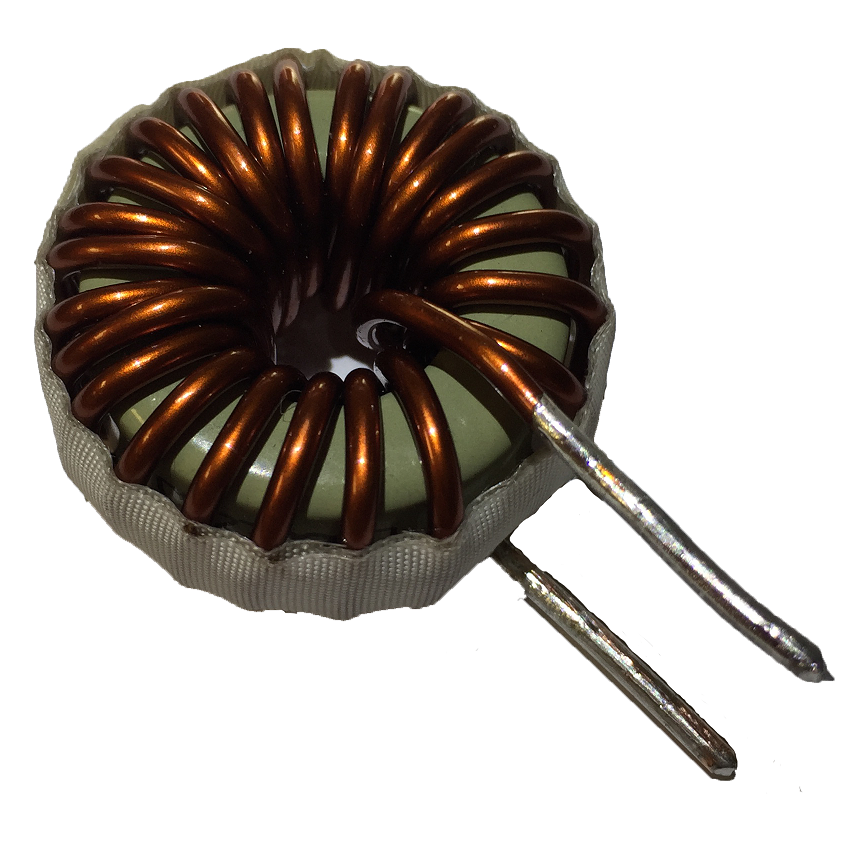

CWS-1HF

HIFLUX Cores used.
Capable of handling very high DC bias current with minimal inductance roll off.
16,000 gauss Saturation Flux.
Through hole mount with pre-tinned leads that can be directly soldered to PCB
We build to meet your specs.
Inductance range from: 4.9uH to 2.2mH
Current range to 4.4 Amps to 65.0 Amps
Also available in XFLUX, MPP, Sendust/KoolMu cores upon request.

Custom HIFLUX - 1HF Power Inductors Series.
Through Hole Mounting Construction



FEATURES:
  • Designed using high saturation and high temperature stability "High Saturation Flux Cores" with distributed air-gap
  • Excellent electromagnetic shielding due to toroidal design
  • Designed for commercial, industrial and military application
  • Low cost designs with pre-tinned leads for PCB through hole mounting
  • Inductance values from 4.9 uH to 2.2 mH
  • Current rating from 4.4 Amps to 65.0 Amps
  • Temperature Rating: -55 deg C to +125 Deg C
  • Potted version available for military application
  • Custom designs are available to meet your specific requirements

Click HERE to see examples of our custom wound products. We wind anything to meet your needs.

IMPORTANT
1) No tooling or set up fees required for standard parts
2) FREE Samples available for large OEMs
3) Typical Delivery: 4 to 6 weeks


Notes:
1
) The prices shown below are for sample quantity. Please call 800-377-3244 or email sales@coilws.com for larger volume OEM pricing.
2
) Our large OEM pricing is extremely competitive. We will meet or beat any competitors prices with better deliveries
3
) Custom designs are available to meet any of your requirements. Please contact us
4
) The data shown below can be sorted by clicking each column header.Click once again to sort in reverse order.
5 ) "Inductance at 1 Khz" ( 2nd column from left in table below ) is the inductance measured at zero or very low DC bias current.
6 ) "Current Rating" ( 3rd column from left in table below ) is based on a 40 deg C temperature rise at an ambient temperature of 90 deg C. This is the DC bias current through the inductor that will cause the inductor will reach a max. temp. rise of 40 deg C. above ambient with some AIR FLOW.
7 ) The saturation current is at least 5 times the max current listed in 5) or 6) above, so instantaneous high current spikes can be tolerated by these inductors.
8) "Dimensions:"

  • A = Outer Dimension
  • B = Height
  • C = Vertical Mounting Hole Distance
  • D = Lead length
  • E = Lead Width
  • F = Horizontal Mounting Hole Distance


Part Number Inductance Current
Rating
DCR
Max
SRF
Min
Dimensions
A /B /C
In inches
Dimensions
D /E /F
In inches
Inductance Rated Current Quantity
on hand
Price
CWS-1HF-12456 600.00 uH 8.00 Amps 40.00 mΩ 1.05 MHz 1.60/ 1.20/ 1.10 0.75/ 0.06 340.0 uH 1
Buy Now
CWS-1HF-12788 600.00 uH 12.00 Amps 60.00 mΩ 502.00 KHz 2.83/ 1.77 1.18/ 0.08/ 1.57 580.0 uH 1
Buy Now
CWS-1HF-12799 500.00 uH 6.80 Amps 61.00 mΩ 964.00 kHz 1.73 x 0.61 x 1.50 1.00 x 0.04 147.0 uH 0 $18.00
Buy Now
CWS-1HF-12454 400.00 uH 25.00 Amps 110.00 mΩ 930.00 kHz 1.89/ 1.04 /1.00 0.08/ 0.80/ 0.63 75.0 uH 1 $17.32
Buy Now
CWS-1HF-11361 300.00 uH 15.00 Amps 170.00 mΩ 1.20 MHz 1.90/ 1.00 0.50/ 0.06/ 0.72x1.23 224.0 uH 1
Buy Now
CWS-1HF-12822 250.00 uH 6.00 amps 46.00 mΩ 1.80 MHz 1.73/ 0.61 1.00/ 0.041/ 1.50 150.0 uH 0 $18.00
Buy Now
CWS-1HF-12206 79.00 uH   38.00 mΩ 3.60 MHz 1.73/ 0.87/ 0.90/ 0.60 0.20/ 0.04   0
Buy Now
CWS-1HF-12680 75.00 uH 25.00 Amps 7.50 mΩ 3.35 MHz 1.60/ 0.90/ 0.16 0.75/ 0.09 55.0 uH 1
Buy Now
CWS-1HF-12959 70.00 uH 82.00 Amps 10.00 mΩ 6450.00 kHz 3.03 x 3.35 x 2.05 0.16 x 0.20 48.8 uH 0
Buy Now
CWS-1HF-11401 45.00 uH 20.00 Amps 8.00 mΩ 6.94 MHz 1.15/ 0.85/ 0.88 0.50/ 0.051 22.0 uH 1
Buy Now
CWS-1HF-250M-17AH 26.00 uH 17.00 Amps 8.00 mΩ   1.22/ 0.63 0.50/ 0.063/ 0.25 21.0 uH 1
Buy Now
CWS-1HF-12838 20.00 uH 25.00 Amps 4.00 mΩ 10.00 MHz 1.30/ 0.64 0.50/ 0.08/ 1.25 12.0 uH 1
Buy Now
CWS-1HF-11563 18.00 uH 20.00 Amps 5.00 mΩ 10.00 MHz 1.20/ 0.65 0.25/ 0.072/ 0.27 16.0 uH 1
Buy Now
CWS-1HF-11913 18.00 uH 65.00 Amps 2.50 mΩ 10.00 MHz 2.18/ 1.00/ 0.95 4.23/ 0.19x0.10 16.0 uH 1
Buy Now
CWS-1HF-11656 12.00 uH 5.50 Amps 10.00 mΩ 10.00 MHz 0.56/ 0.25/ 0.25 0.50/ 0.032 10.0 uH 1
Buy Now
CWS-1HF-12439 9.75 uH 70.00 Amps 90.00 mΩ >10.00 MHz 1.32 / 1.15/ 0.25 0.16 / 1.50 / 0.54 7.2 uH 22 $13.97
Buy Now
CWS-1HF-7R5M-25AH 7.50 uH 25.00 Amps 5.00 mΩ   1.38/ 0.71 0.50/ 0.055/ 0.15x0.20x0.15 6.5 uH 1
Buy Now
CWS-1HF-11875 4.90 uH 4.40 Amps 14.00 mΩ   0.55/ 0.27 0.12x0.16   1
Buy Now
CWS-1HF-11238 2.20 mH 20.00 Amps 80.00 mΩ 204.00 KHz 2.46/ 1.57 6.50/ 0.08/ 1.22 630.0 uH 1
Buy Now
CWS-1HF-12660 1.60 mH 12.00 Amps 40.00 mΩ 415.00 KHz 2.21/ 1.85 0.50/ 0.10/ 1.00 900.0 uH 1
Buy Now
