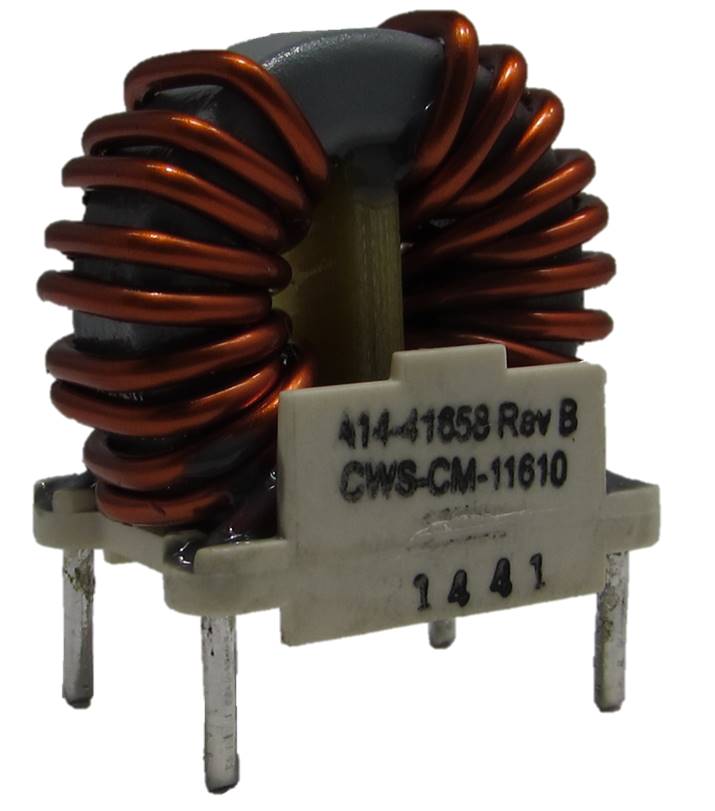

CWS-CM Series

- Available as through hole vertical or horizontal mounting
- Single and multiple layers wound on high permeability ferrite for widest frequency range
- Spacer on applicable parts provide 3mm creepage spacing to meet UL, CSA and IEC safety specifications
- All materials used are UL 94VO recognized.
- Dimension : OD = Outside Diameter. Ht = Height. Wt = Width. L = Length
- Inductance range from: 10 uH to 109 mH
- DCR : 0.4 milli ohms to 200 milli ohms
- Suitable for power line filtering and EMI/RFI suppression in SMPS

Separated windings for minimum interwinding capacitance Single layer windings for highest common mode impedance over the widest frequency range Spacer provides 3 mm creepage distance for UL, CSA, IEC compliance All materials used are UL94-VO recognized 200 °C insulated solid wires used for high temperature operation Operating temperature: - 40 °C to + 105 °C. Please call factory for 125 °C types Suitable for 100 Khz to 500 Khz Available in both vertical or horizontal mount Application includes power line filtering, EMI/RFI for switch mode power supplies
COMMENTS: Custom inductance values or current ratings are available. For custom or special orders, the sizes may be different from those shown here The prices shown below are for low volume quantity. Please call 800-377-3244 or email sales@coilws.com for larger volume OEM pricing. Not all parts are in stock. If parts are out of stock, delivery can take up to 6 weeks.
